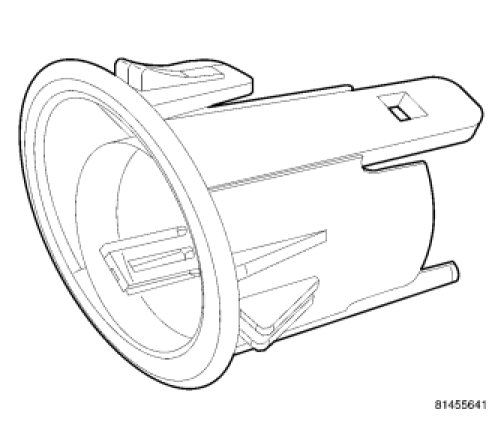

Park Assist Sensor Bezel - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove rear fascia Rear Fascia - Removal.
3. Disconnect the sensor electrical connector (2).

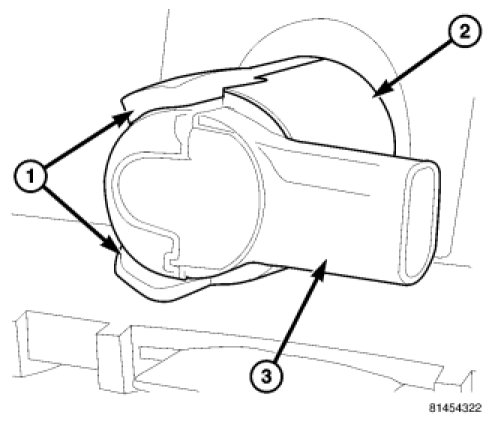

4. Using a trim stick or equivalent, gently pry out on the two retaining tabs (1) and pull the sensor (3) straight out of the retaining bezel (2).




5. If the bezel is either damaged or broken during removal of the sensor, gently press in on the bezel retaining tabs and then push bezel out of fascia.
