Amplifier - Removal

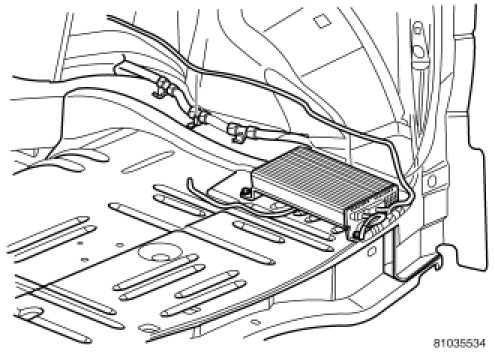

REMOVAL

BASE





1. Disconnect and isolate the battery negative cable.
2. Fold the left rear seat flat.
3. Lift up the door covering the jack and amplifier.
4. Remove the mounting fasteners.
5. Disconnect the electrical harness connectors and remove amplifier.

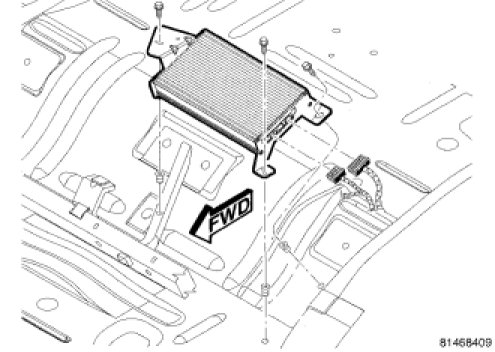

INTERMEZZO





1. Remove the rear floor stowage tray.
2. Remove the three mounting fasteners.
3. Disconnect wire harness connectors and remove amplifier.
