Removal

REMOVAL

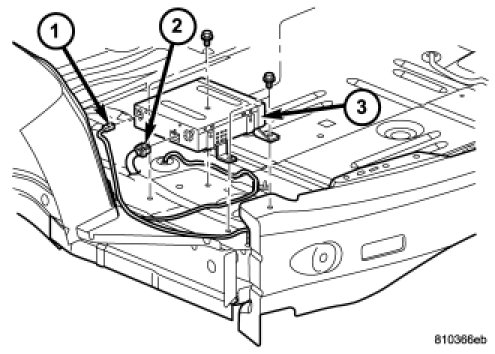

1. Disconnect and isolate the battery negative cable.
2. Remove rear floor stowage tray Removal.
3. Remove mounting fasteners.




4. Disconnect electrical harness connector and antenna cable from navigation unit.
5. Remove navigation unit from mounting bracket.
