Installation

INSTALLATION

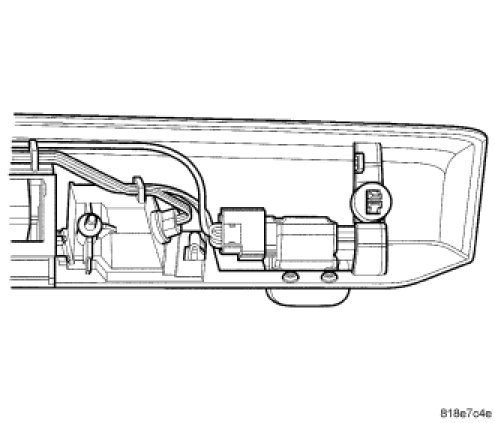

1. Connect the electrical harness connector.

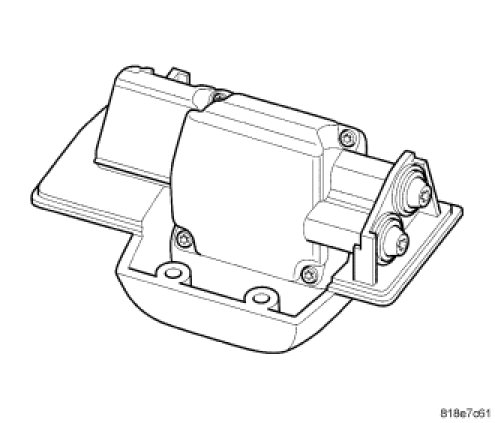

2. Install the camera to the mounting bracket.




3. Install the camera mounting fasteners.
4. Install the liftgate light bar. Installation
5. Connect the battery negative cable.
