Installation

INSTALLATION

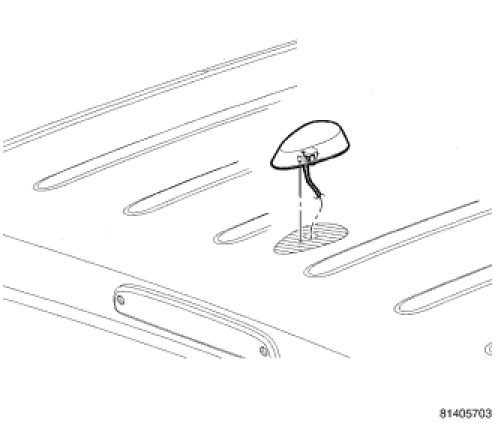

1. Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.
2. Install and tighten mounting fastener.
3. Connect antenna cable connectors to antenna.
4. Install headliner.
5. Connect battery negative cable.
