Installation







INSTALLATION





1. Install instrument panel antenna cable to vehicle.

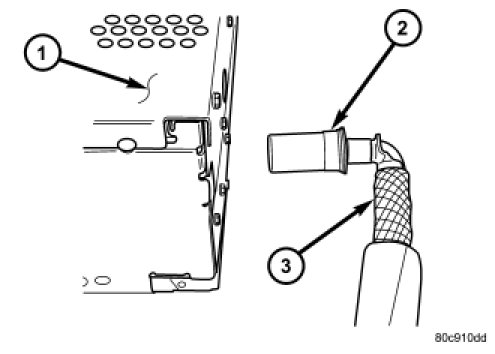

2. Connect cable to back of radio.
3. Install radio Installation.
4. Connect cable hanger clip to HVAC unit.
5. Connect instrument panel antenna cable to antenna cable.
6. Install glove box.
7. Connect the battery negative cable.
