Installation







INSTALLATION

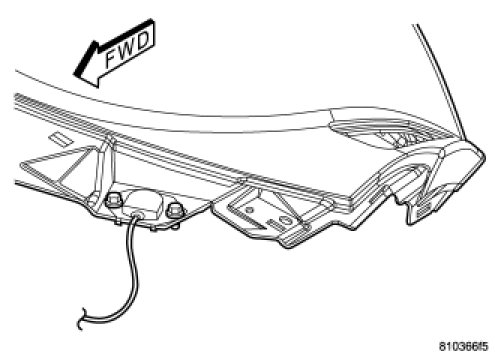

1. Position the replacement cable and route under the top cover, down to the right side and connect to the antenna cable.
2. Install mounting fasteners.
3. Install the instrument panel top cover Instrument Panel Cover - Installation.
4. Connect the battery negative cable.
