Removal

REMOVAL

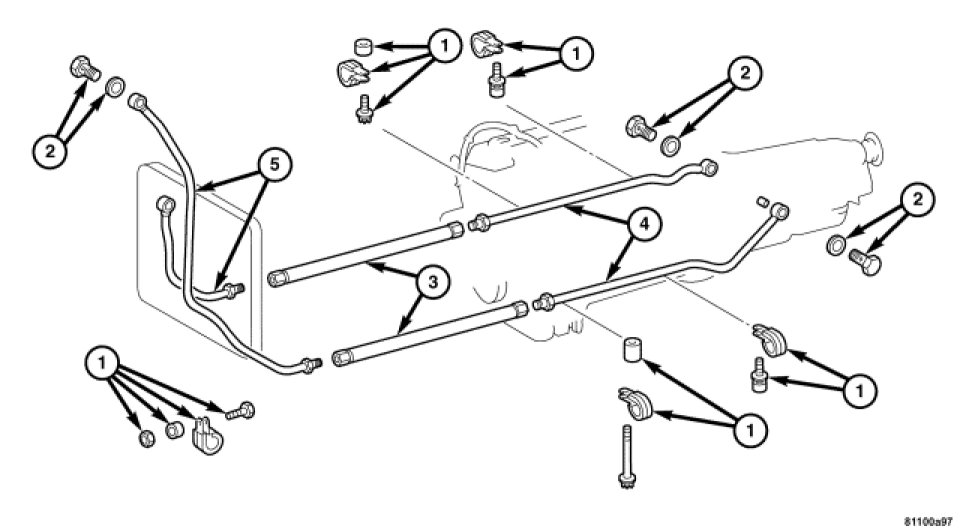

NOTE: To service the front copper transmission cooler lines (5) the radiator must be removed. Radiator - Removal.

1. Raise and support the vehicle.
2. Remove the lower splash shield.
3. Disconnect the fittings at either end of the line being serviced.
4. Remove the line retainers (1) and the cooler line(s) as necessary.
