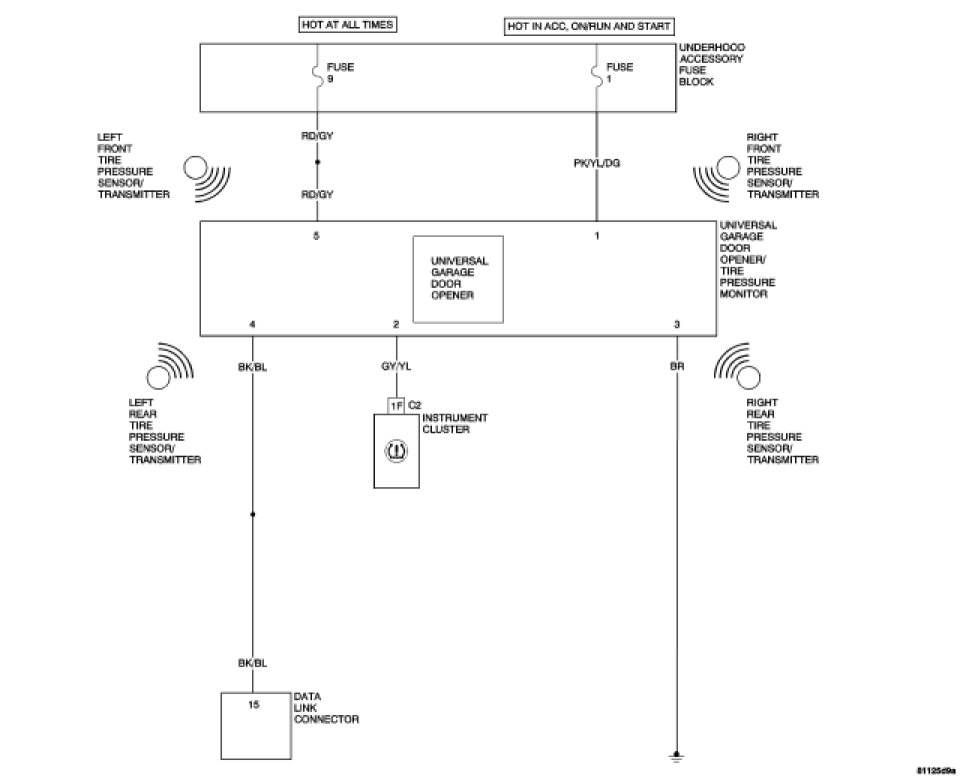

Home >> Chrysler >> 2008 >> Crossfire V6-3.2L >> Repair and Diagnosis >> Steering and Suspension >> Wheels and Tires >> Tire Monitoring System >> Diagrams >> Electrical Diagrams >> Schematics and Diagrams
