Passenger Seat Belt Switch
Component ID: 222

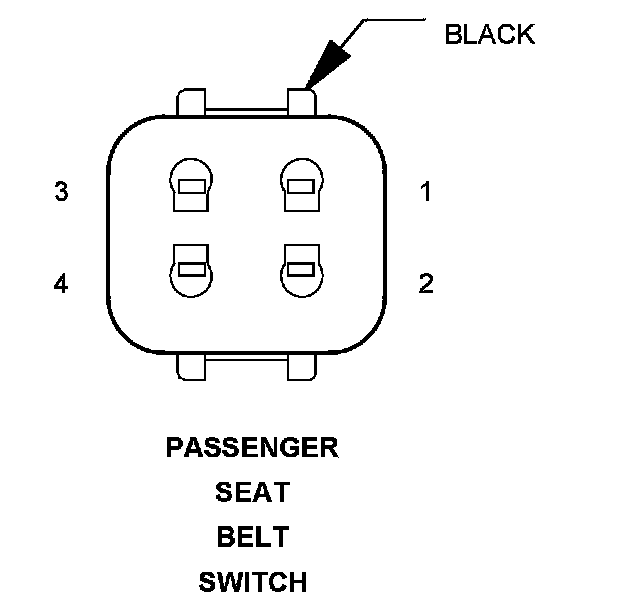

Component : PASSENGER SEAT BELT SWITCH
Connector:
Name : PASSENGER SEAT BELT SWITCH
Color : BLACK
# of pins : 4
Pin Circuit Description
1 20GY/BL PASSENGER SEAT BELT SWITCH SENSE
2 20BR GROUND
3 - -
4 - -
Component ID: 222
Component : PASSENGER SEAT BELT SWITCH
Connector:
Name : PASSENGER SEAT BELT SWITCH
Color : BLACK
# of pins : 4
Pin Circuit Description
1 20GY/BL PASSENGER SEAT BELT SWITCH SENSE
2 20BR GROUND
3 - -
4 - -
