Driver Seat Belt Switch

Component ID: 79

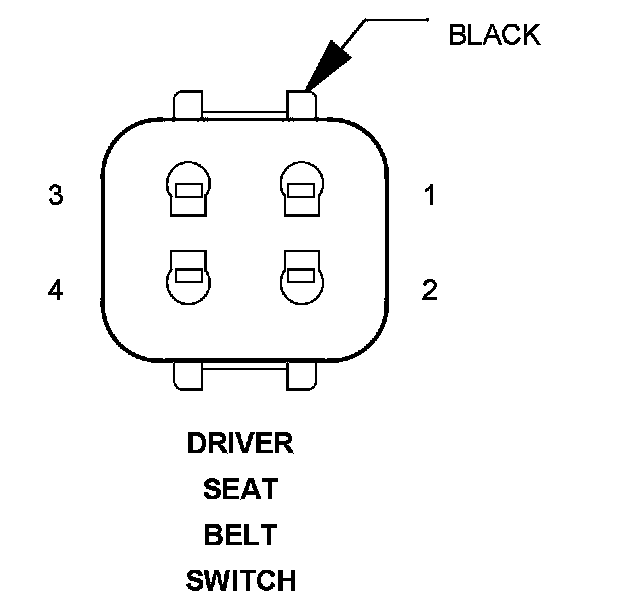

Component : DRIVER SEAT BELT SWITCH

Connector:
Name : DRIVER SEAT BELT SWITCH
Color : BLACK
# of pins : 4




Pin Circuit Description
1 20BR GROUND
2 20GY/DG DRIVER SEAT BELT SWITCH SENSE
3 20BR GROUND
4 20BR/DG DRIVER SEAT BELT SWITCH SENSE
