Dimmer Switch: Description and Operation

DESCRIPTION

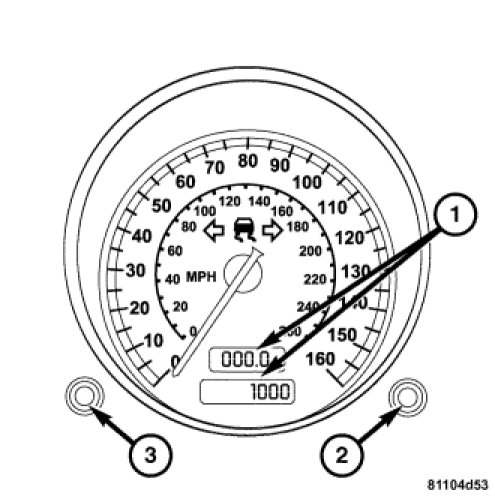

The dimmer switch (3) is an integrated part of the Instrument Cluster and is located at the left side of the speedometer. It controls the brightness of the adjustable interior illumination when rotated to the left or right. The dimmer switch cannot be repaired. If it is found faulty or damaged, the entire Instrument Cluster must be replaced. For complete Instrument Cluster removal procedures, refer to Instrument Cluster removal.
