Rear Wheel Speed Sensor - Removal

REMOVAL





1. Remove the bolt (1) attaching the wheel speed sensor to the rear knuckle.
2. Remove the rear wheel speed sensor (2) from the knuckle.

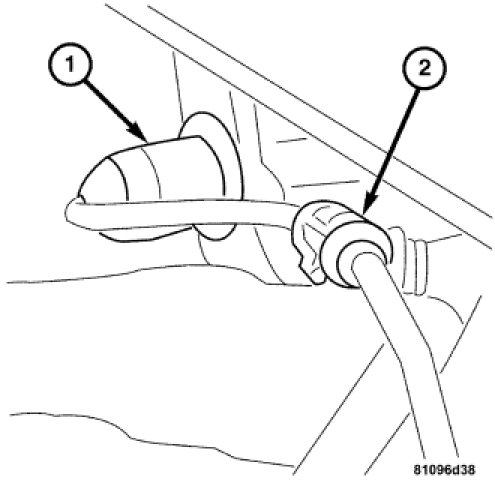

3. Pull the rubber grommet (1) out of the body. Unhook the wheel speed sensor wire harness from the mount (2).

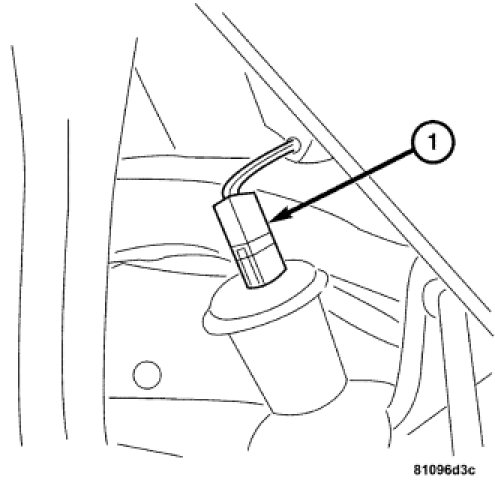

4. Disconnect the wheel speed sensor harness connector (1).
