Removal

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY. Service Precautions.





1. Disconnect the negative battery cable.
2. Remove the door interior trim panel. Door Trim Panel - Removal.
3. Carefully peel back the door watershield enough to expose the driver door lock switch.

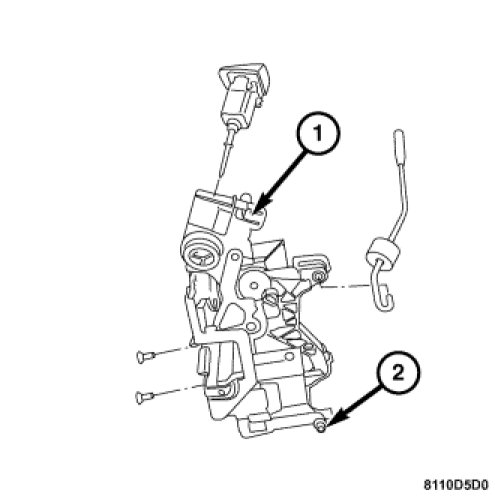

4. Release the locking tab (1) attaching the driver door lock switch to the door latch assembly.
5. Disconnect the pneumatic supply line (2) from the door lock actuator.
6. Disconnect the remaining door harness connectors, and remove the driver door lock switch.
