Passenger Knee Blocker Airbag

DESCRIPTION

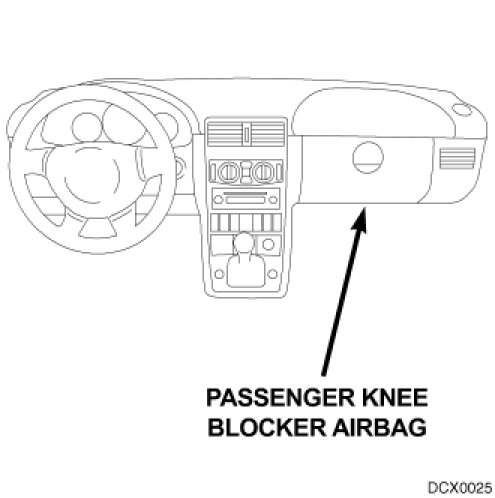

The Knee Blocker Airbag is located on the passenger side of the vehicle beneath the glove box opening.

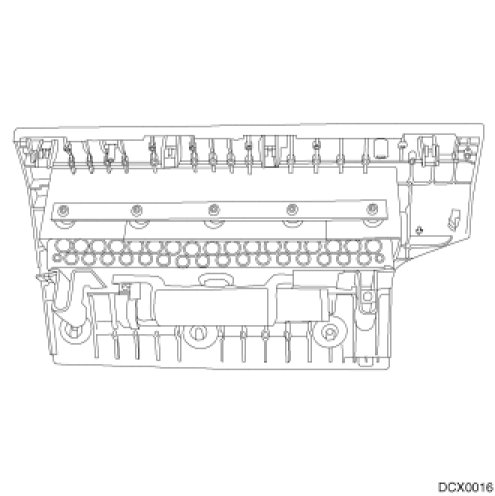

The knee blocker airbag includes one reaction plate and one load plate, within which the cushion and inflator are mounted and sealed. Following a knee blocker airbag deployment, the knee blocker airbag and instrument panel assembly must be replaced. For diagnosis and testing, use a scan tool and refer to the appropriate diagnostic information.
