Ignition Coil - Removal

REMOVAL





1. Disconnect the negative battery cable (2).




2. Remove the air cleaner inlet tubes (2).
3. Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

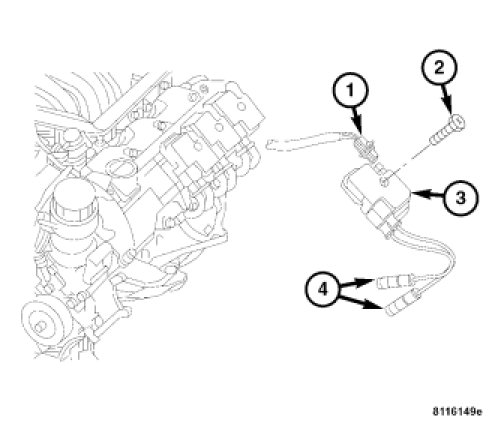

4. Disconnect the ignition coil wire harness connector (1).
5. Disconnect the spark plug cables (4) from the spark plugs.
6. Remove the ignition coil retaining bolt (2).
7. Remove the ignition coil (3) from the cylinder head cover.
