Accelerator Pedal - Removal

REMOVAL - LHD





1. Disconnect the negative battery cable.

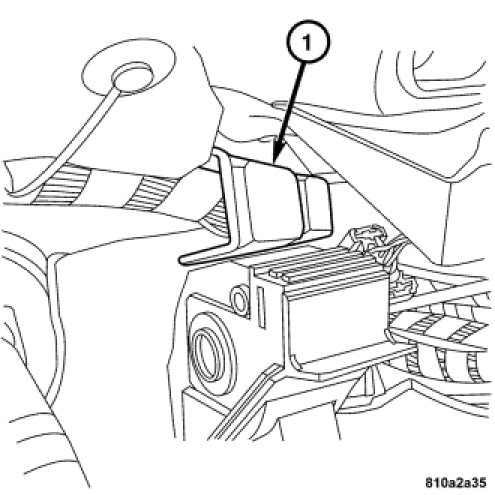

2. Remove the lower accelerator nut cover (1) and the nut.

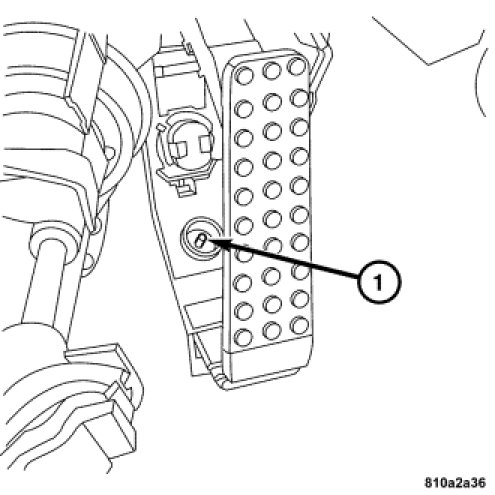

3. Lift the accelerator pedal off of the welded stud and out of the bracket (1).
4. Disconnect the accelerator pedal harness connector from the accelerator pedal.
