EGR Valve - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.

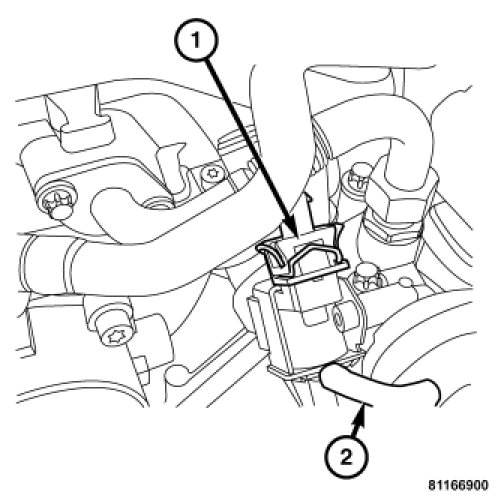

3. Disconnect the solenoid harness connector (1).
4. Disconnect the solenoid to valve vacuum line (2).

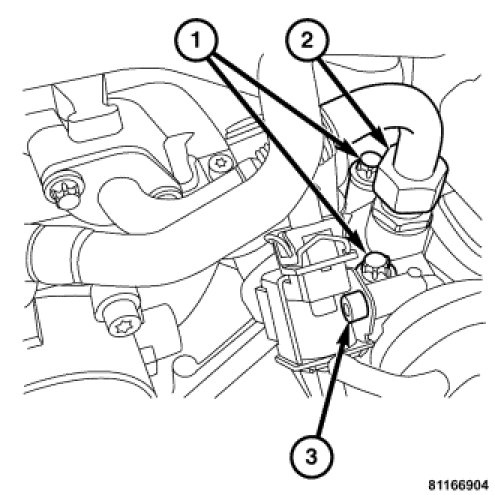

5. Remove the EGR tube flange nut (2) at valve.
6. Remove the solenoid to valve mounting bolt (3).
7. Remove the valve to cylinder head mounting bolts (1).
8. Clean the gasket surfaces. Discard the old gasket.
9. Clean the EGR passages as necessary.
