Description

DESCRIPTION





The EGR Valve consists of three major components:

- EGR Valve
- EGR Solenoid
- EGR Tube

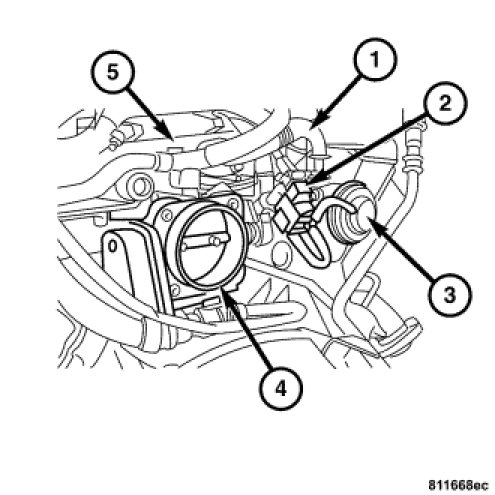

The EGR Valve (3) is located at the right rear of the engine and is attached to the right cylinder head, to the right of the Throttle Body (4). The EGR Solenoid (2) is attached to the EGR Valve (3) on the throttle body side of the valve. The EGR Tube (1) connects the EGR Valve (3) to the rear of the Intake Manifold (5).
