EVAP Purge Solenoid - Removal

REMOVAL - LHD

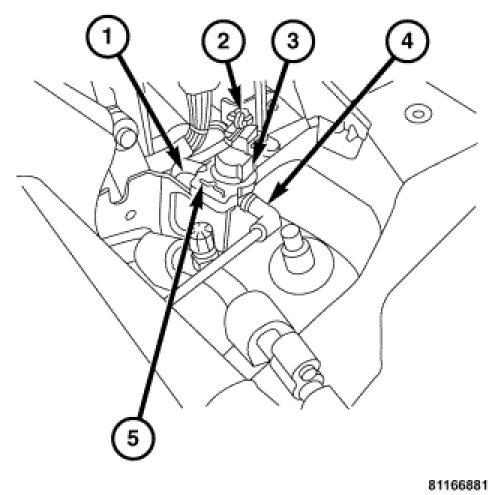

1. Disconnect harness connector from solenoid (2).
2. Disconnect vapor hoses (1 and 4) from solenoid (3).
3. Remove solenoid (3) from bracket (5).
