Air Diverter Solenoid: Locations

Component ID: 7
Component : AIR PUMP SWITCHOVER SOLENOID

Connector:
Name : AIR PUMP SWITCHOVER SOLENOID
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20GY/BR AIR PUMP SWITCHOVER SOLENOID CONTROL
2 20RD/DG FUSED ENGINE CONTROL RELAY OUTPUT

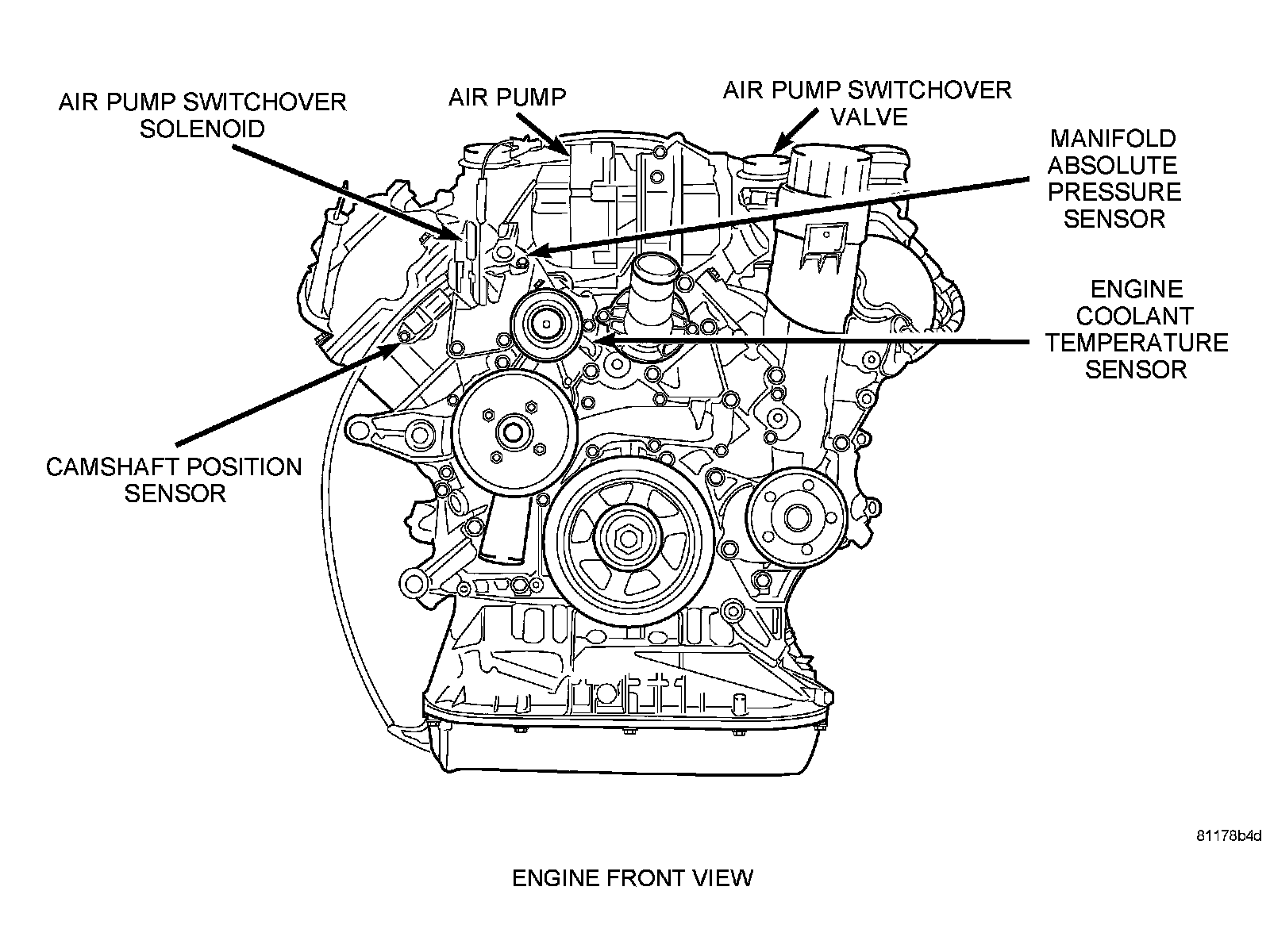

Component Location - 8
