Accessory Drive Belt - Removal

REMOVAL





1. Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

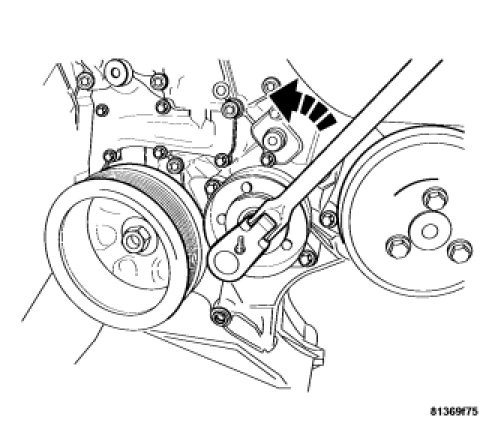

2. Rotate the belt tensioner counterclockwise and release the tension on the accessory drive belt.
3. Remove the accessory drive belt from the pulleys.
4. Carefully release the wrench tension on the belt tensioner.
5. Inspect the accessory drive belt. Refer to damage patterns. Inspection.
6. Inspect the pulleys for wear or damage.
7. Replace the accessory drive belt or pulleys as necessary.
