Removal

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.





1. Disconnect the negative battery cable.




2. Remove the driver airbag. Driver Airbag - Removal.

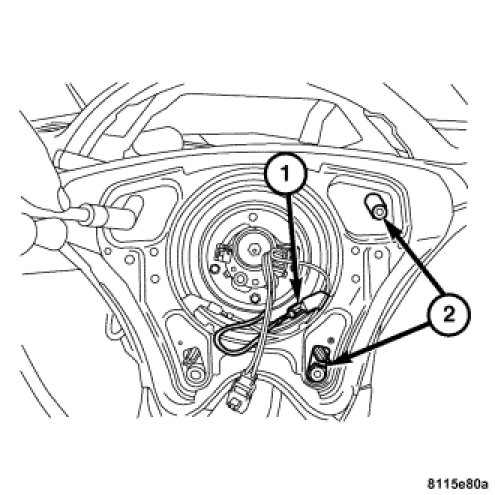

3. Disconnect the horn switch harness connector (1).
4. Remove the horn switch retaining nuts (2), and remove the horn switch from the steering wheel.
