Description







DESCRIPTION

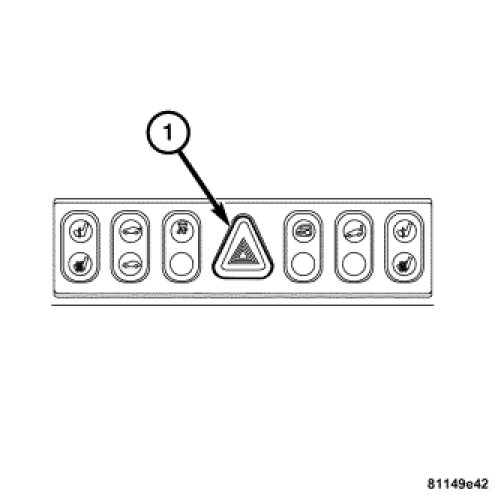

The Hazard Switch (1) is actuated by a push button located in the center of the Instrument Panel directly below the Radio. The Hazard Switch is identified with a triangular shape and is red in color. Push and release the button (1) to turn the hazard function ON or OFF. When pushed, the button will move out from the panel in the ON position and remain in toward the panel in the OFF position.
