Door Ajar Switch







DOOR AJAR SWITCH





1. Disconnect the negative battery cable.

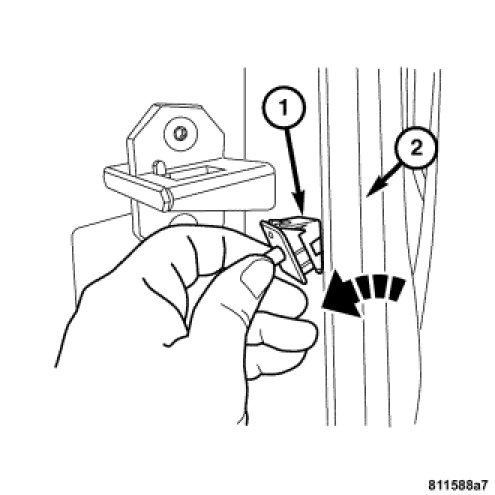

2. Using a trim stick, press and release the retaining tab (1) at the top of the door ajar switch.
3. Pull the top of the door ajar switch out and downward away from the B-pillar (2), then disconnect the door ajar switch harness connector.
