Lower Oil Pan







LOWER OIL PAN

1. Drain the engine oil. Service and Repair.




2. Remove the lower splash shield screws (1) and the splash shield.




3. Remove the transmission oil cooler line retainer bolts (1). Reposition the cooler lines out of the way.

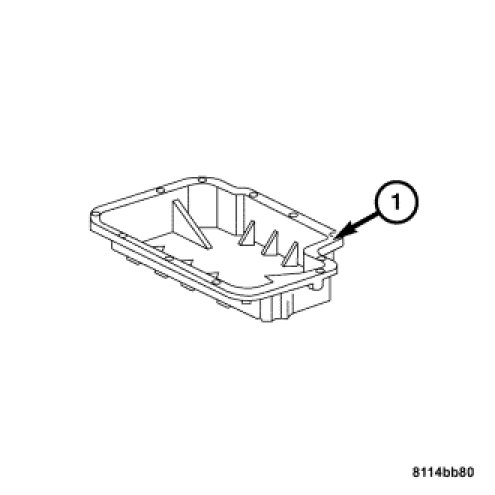

4. Remove the lower oil pan retaining bolts and the lower oil pan (1).
