Removal - Left







REMOVAL - LEFT

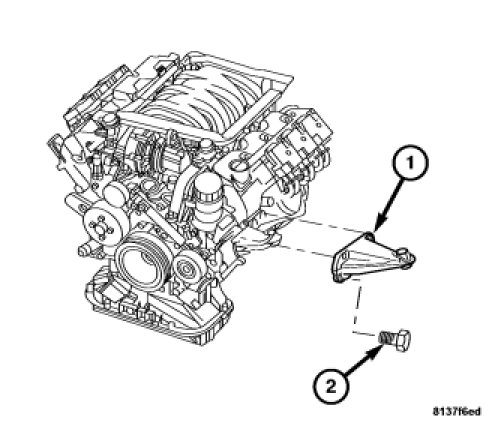

1. Remove the engine mount. Front Engine Mount.




2. Remove and discard the engine mount bracket bolts (2).
3. Remove the engine mount bracket (1).
