Rear Engine Mount







REMOVAL





1. Raise and support the vehicle.
2. Support the transmission with a transmission jack.

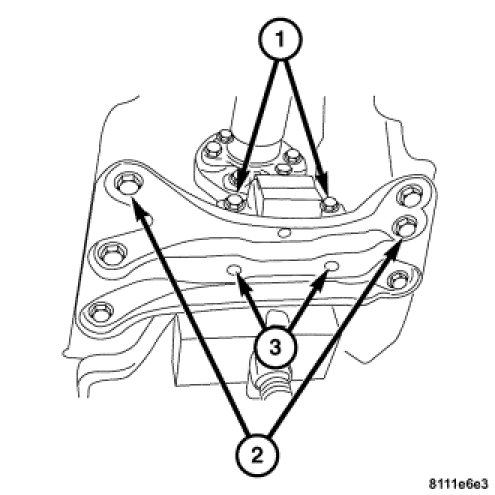

3. Remove the rear mount lower bolts (3).
4. Raise the transmission slightly off of the rear crossmember.
5. Remove the rear mount upper bolts (1).
6. Remove the rear mount.
