Accessory Drive Belt Tensioner - Installation

INSTALLATION

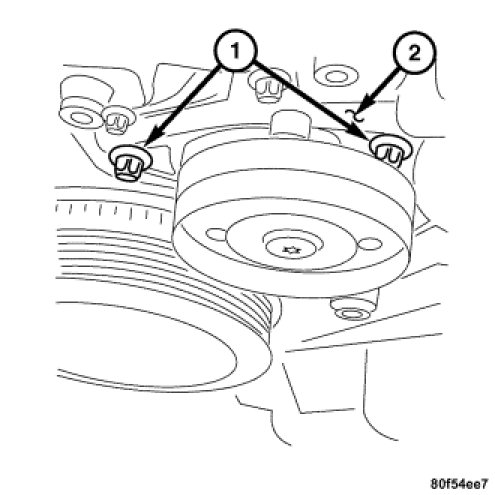

1. Position the belt tensioner (2) on the timing chain cover.
2. Install the belt tensioner bolts (1). Tighten the bolts to 20 Nm (15 ft. lbs.).

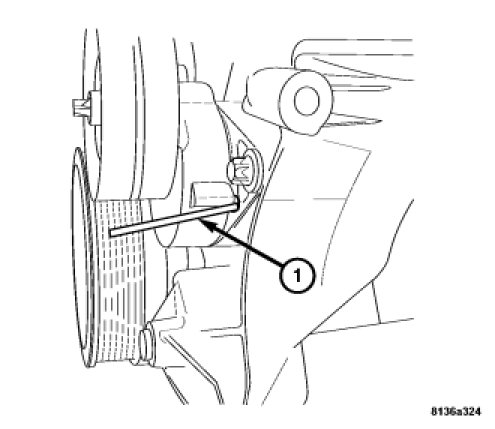

3. Install the wrench on the tensioner and remove the tensioner locking pin (1).




4. Install the accessory drive belt. Accessory Drive Belt - Installation.




5. Install the engine cover (1). Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

6. Start the engine and verify the accessory drive belt is properly routed and seated.
