Hydraulic Lifters - Removal







REMOVAL

1. Remove the appropriate Cylinder Head Cover. Cylinder Head Cover - Removal
2. Remove the Camshaft Bearing Bridge Assembly. Removal

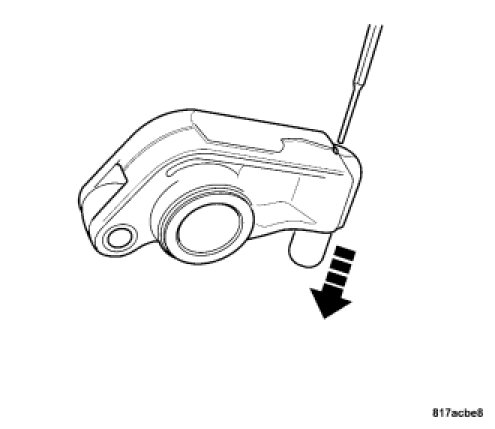

3. Separate the lifter from the rocker arm using a 2mm drift to press the hydraulic lifter out of its bore.
