Engine Coolant Thermostat - Removal

REMOVAL





1. Remove the air cleaner housing. Air Cleaner Housing - Removal.
2. Partially drain the cooling system. Service and Repair.
3. Disconnect the upper radiator hose.

NOTE: The thermostat housing and the thermostat are serviced as an assembly. The thermostat cannot be serviced separately.

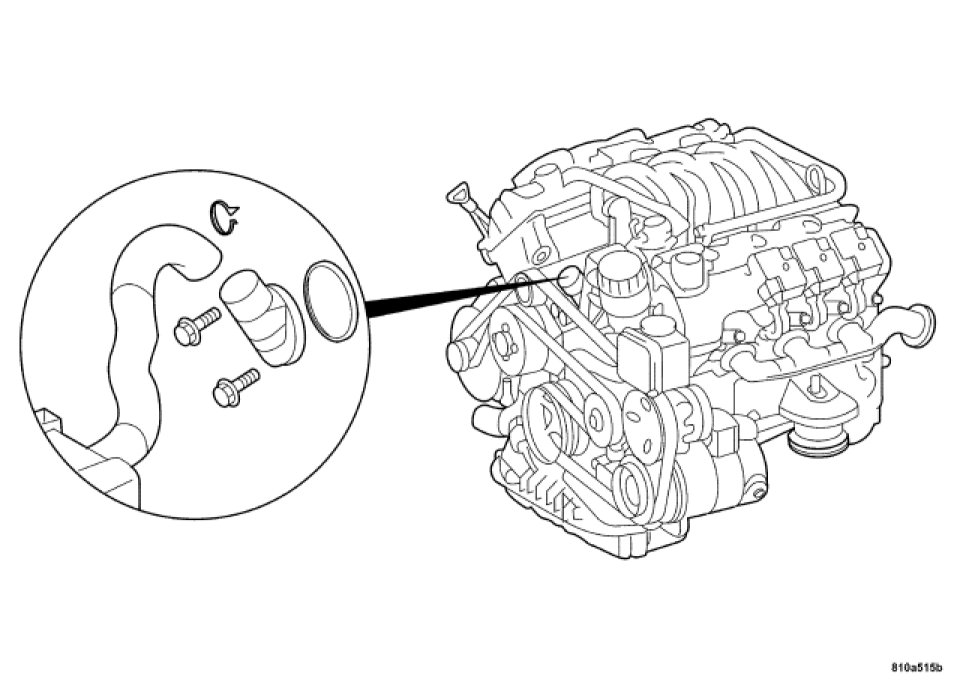

4. Remove the thermostat housing retaining bolts and remove the thermostat and housing from the engine.
