Installation

INSTALLATION

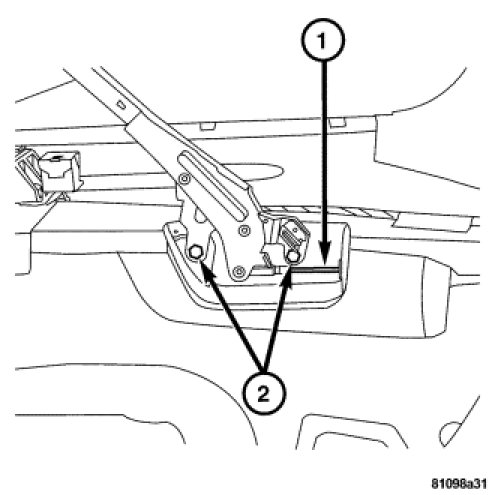

1. Install the front parking brake cable (1) through the hole in the floor. Then install the parking brake lever and bolts (2). Tighten to 20 Nm (15 ft. lbs.).
2. Connect the parking brake switch harness connector.




3. Install the center console (2). Center Console - Installation.

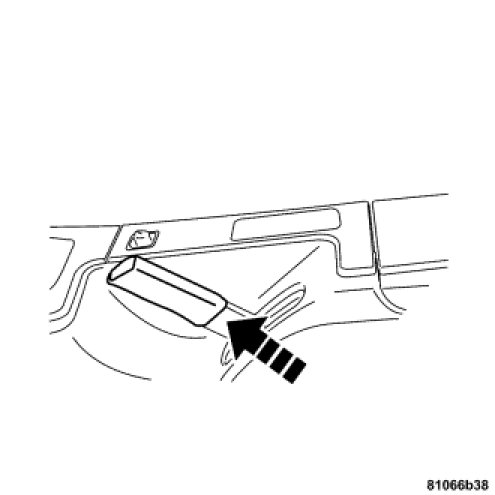

4. Install the rubber handle (1) onto the parking brake lever.

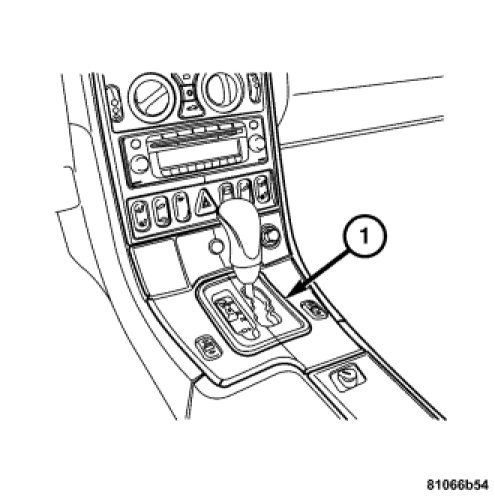

5. Install the shifter bezel (1). Center Console - Installation.




6. Install the parking brake cable equalizer (1) to the front parking brake cable mounting bolts (5).




7. Tighten the parking brake equalizer tensioning bolt (3).
8. Attach the return spring (4) from the equalizer (1) to the body frame.
9. Adjust the parking brake. Adjustments.
