Rear

REAR DISC BRAKE CALIPER





1. Raise and support the vehicle.
2. Remove the rear tire and wheel assembly.
3. Drain a small amount of fluid from the master cylinder brake reservoir with a clean suction gun.
4. Remove caliper mounting bolts (1). Then remove the caliper from the knuckle.




CAUTION: DO NOT spill the brake fluid on any painted surfaces. Brake fluid can damage paint.

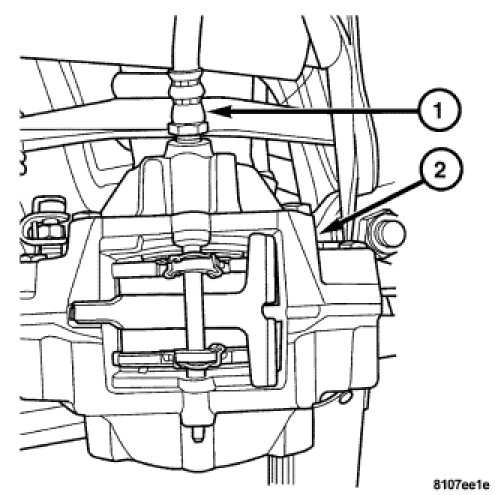

5. Remove the brake hose (1) by rotating the caliper (2) while holding the brake hose (1) with a line wrench.

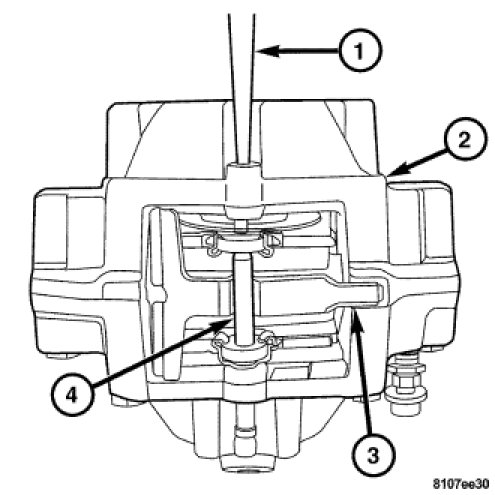

6. Using a suitable punch (1) knock out the retaining pin (4) that holds the pads in place.
7. Remove the anti-rattle clip (3) and remove the brake pads from the caliper (2).
8. Disassemble the caliper to check for wear or damage. Disc Brake Caliper - Disassembly.
