Motor Bracket







MOTOR BRACKET





1. Remove the spoiler motor Motor.
2. Remove the driveshafts Driveshaft.

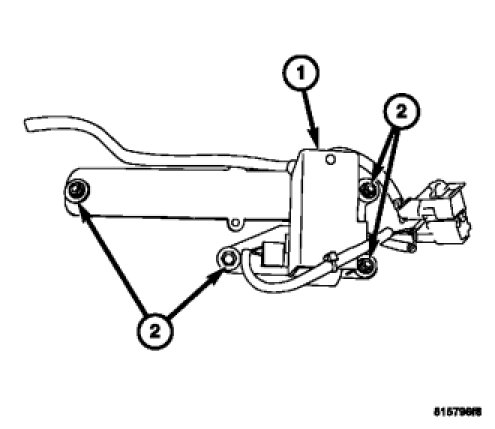

3. Remove the 4 nuts (2) and the spoiler motor bracket (1).
