Spoiler Dampeners

SPOILER DAMPENERS

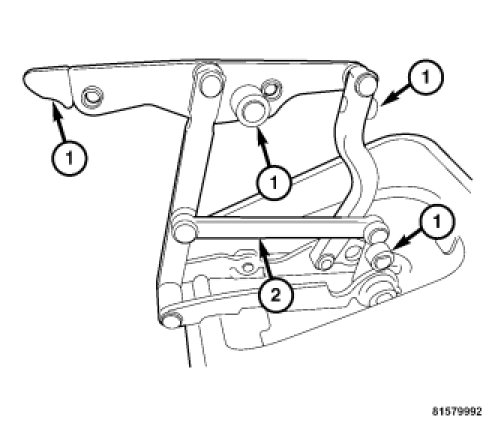

NOTE: Left side is shown. Right side is similar.





NOTE: With the spoiler motor removed, the spoiler wing frame can be moved as needed to access the spoiler dampeners.

1. Install the spoiler dampeners (1) onto the spoiler wing frame (2).
2. Install the spoiler motor Motor.
3. Install the spoiler wing Spoiler Wing.
4. Operate the spoiler and check for correct operation.
