Power Seat Track - Removal







REMOVAL





1. Remove the front seat. Seat - Removal.
2. Remove the power seat switch assembly. Power Seat Switch - Removal.

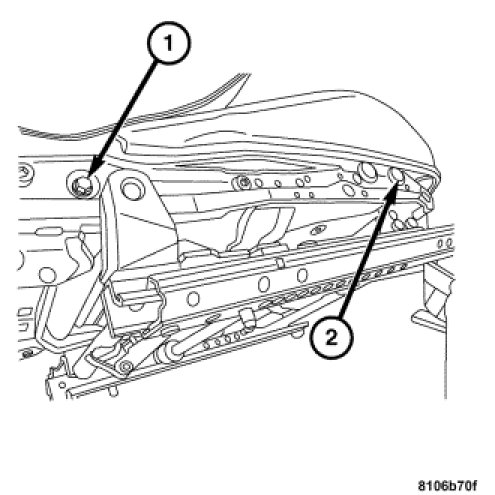

3. Remove the power seat track rear inboard and outboard attachment bolts (1).
4. Tilt the rear track mechanism outward then remove the power seat track front inboard and outboard attachment bolts (2).

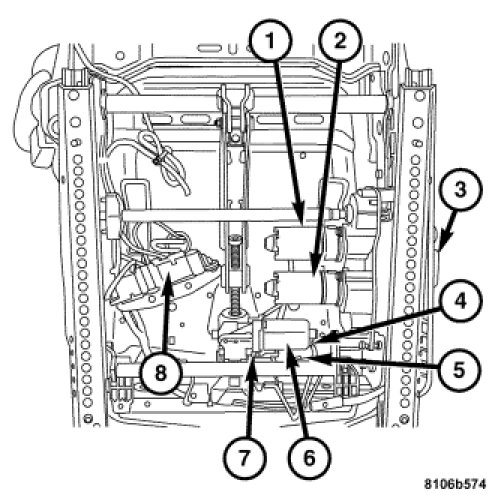

5. Remove the power seat track power harness connector (8).
6. Remove the power seat track from the seat cushion.
