Plastic Back Cover







PLASTIC BACK COVER

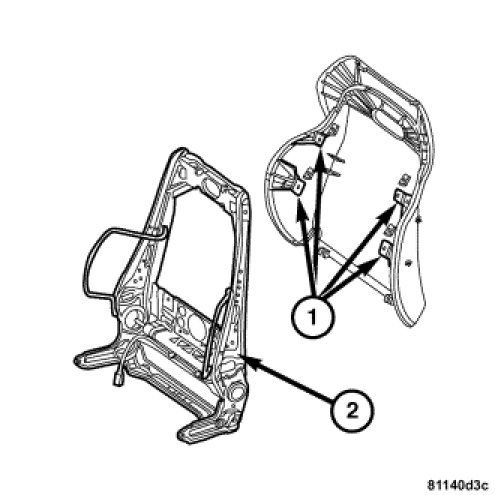

1. Install the plastic back cover on the top of the seat back frame (2).
2. Install the screws (1) on left and right sides.
3. Install the cover on the seat back. Seat Back Cover - Installation.
