Drawer

DRAWER

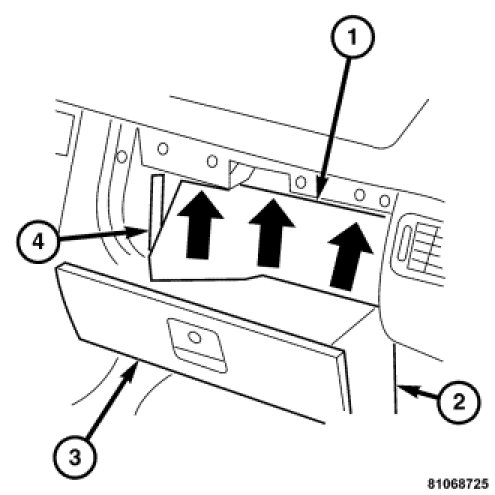

1. Open the glove compartment drawer (3).

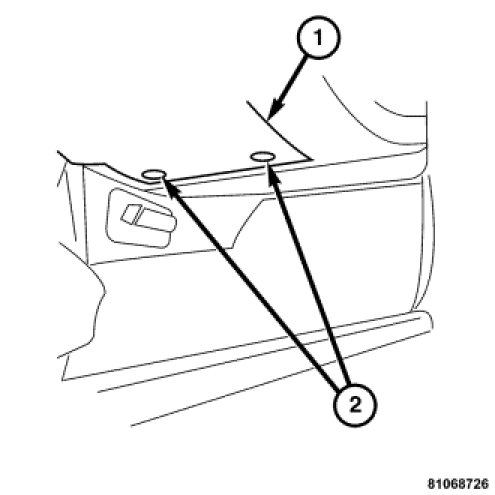

2. Disconnect the retaining rail for the interior covering (1) at the top with a plastic wedge.

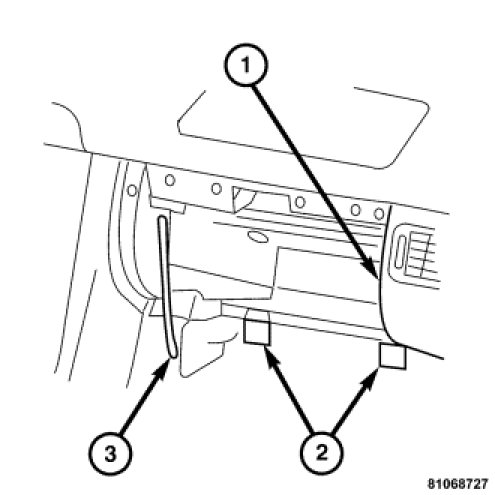

3. Disconnect the insert clip from the damper shock (2).
4. Remove the damper shock.




5. Remove the screws (2) from both of the hinges.




6. Pull the glove compartment drawer out of the hinges (2).
7. Remove the clip at the bottom of the retaining strap and unhook the retaining strap (3).
8. Remove the glove compartment drawer from the vehicle.
