Installation - Roadster







INSTALLATION - ROADSTER

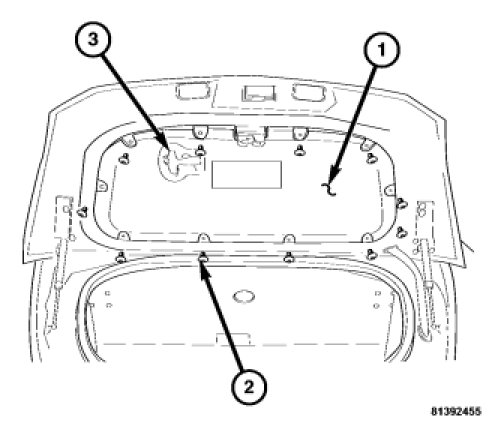

1. Install the emergency release handle (3) into the trim panel (1).
2. Connect the emergency release cable and install the trim panel (1) to the decklid using the fasteners (2).
