Installation







INSTALLATION

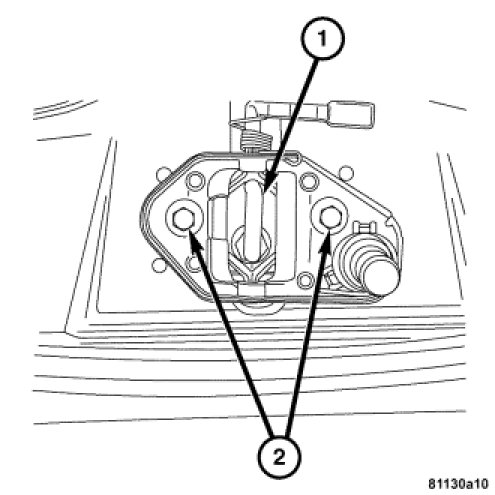

1. Install the latch striker (1) to the hood.
2. Install the two bolts (2) attaching the latch striker (1) to the hood. Tighten to 10 Nm (88 in. lbs.).
