Rear Panel Speaker

REAR PANEL SPEAKER





1. Move the seats and tilt the seat back to the full forward position.
2. Remove the door sill molding.
3. Remove the edge plate and the door edge molding.

CAUTION: The speaker grille is plastic and may break if excessive force is applied in one place. Only use the trim stick in the position shown.

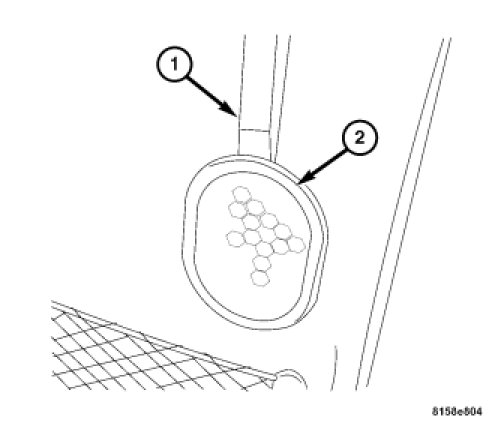

4. Using a trim stick (1), release the speaker grille retaining tab (2) from the back panel carpet, and lift the speaker grille out.




5. Fold the back panel carpet to one side, enough to see the retaining nuts (4).

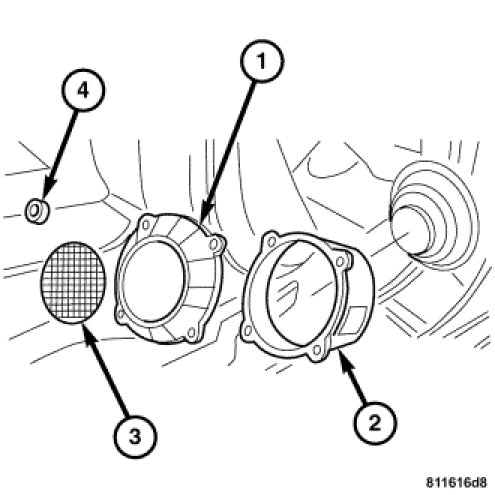

6. Remove the retaining nuts (4), then remove the speaker shroud (1) from the inner mounting frame (2).

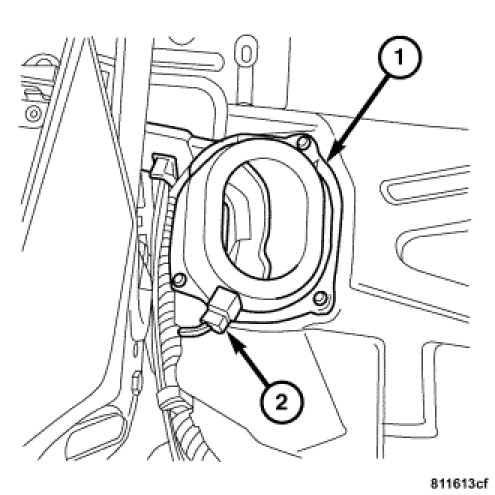

7. Disconnect the rear panel speaker harness connector (2).
8. Remove the inner mounting frame (1) together with the left or right rear panel speaker from the vehicle.
