Rear Panel Speaker

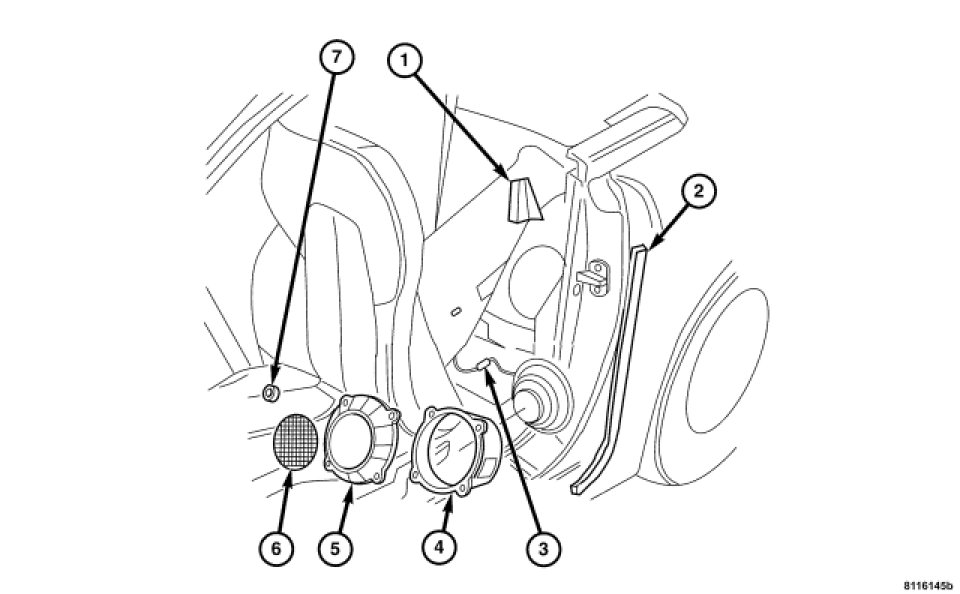

REAR PANEL SPEAKER





1. Install the inner mounting frame (4) together with the left or right rear panel speaker into the opening of the rear panel.
2. Connect the rear panel speaker harness connector (3).
3. Install the speaker shroud (5) to the inner mounting frame (4).
4. Install the retaining nuts (7) and secure, then unfold the back panel carpet.
5. Install the rear panel speaker grille (6).
6. Install the door edge molding (2) and the edge plate (1).
7. Install the door sill molding.
8. Move the seats back to their normal driving position.
