Universal Transmitter - Removal







REMOVAL





1. Disconnect the negative battery cable.

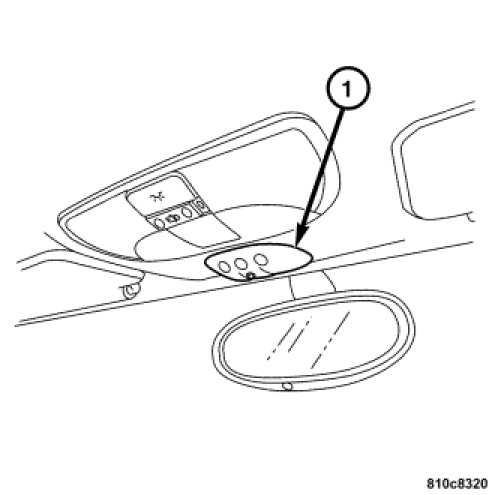

2. Using a plastic wedge, slide the wedge under the Universal Garage Door Opener/Tire Pressure Monitor module and the headliner and pry the Universal Garage Door Opener/Tire Pressure Monitor module away from the headliner.
3. Disconnect the Universal Garage Door Opener/Tire Pressure Monitor module harness connector.
