No Vehicle Speed Signal (CAB CAN Message)

P0500 - NO VEHICLE SPEED SIGNAL (CAB CAN MESSAGE)

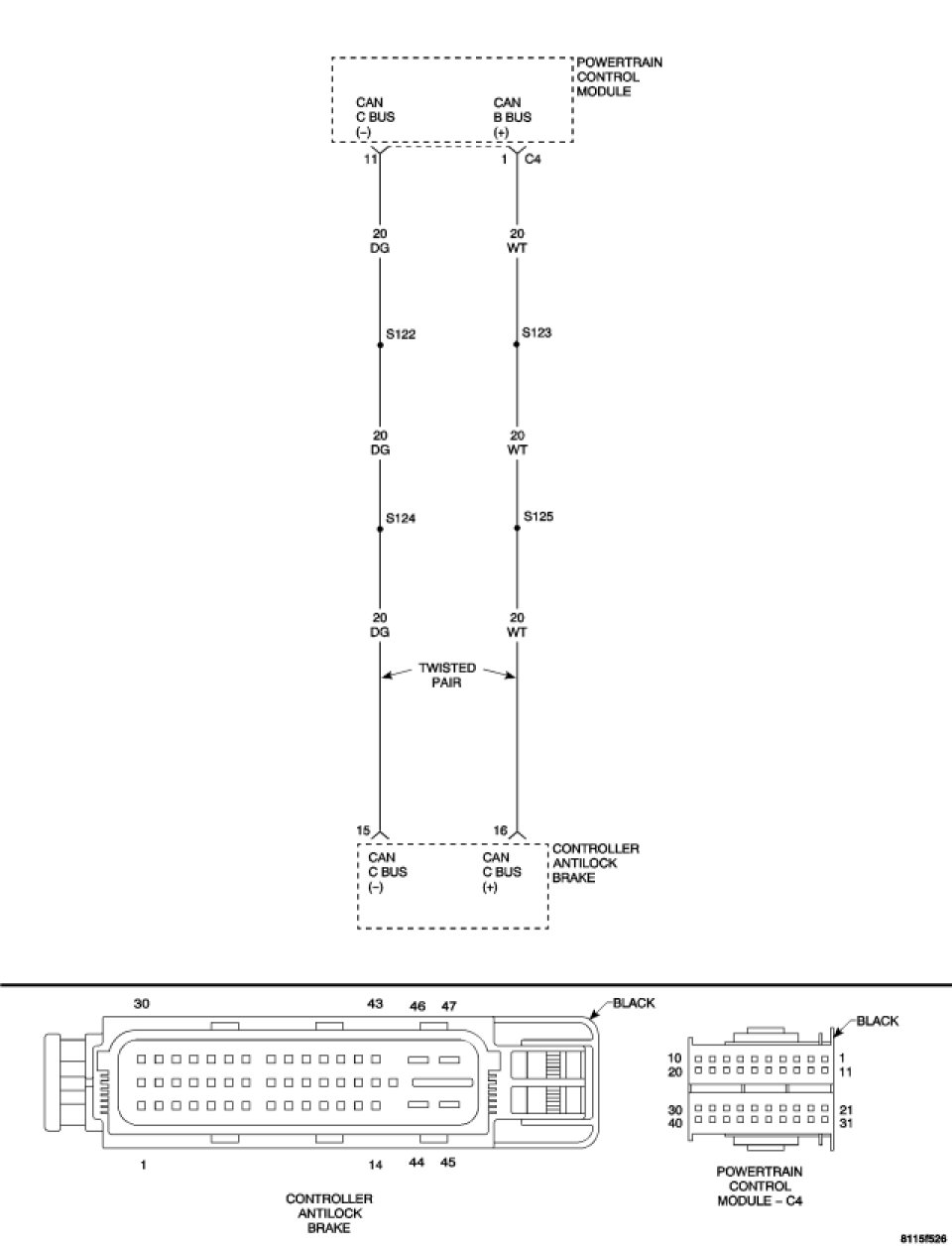

For a complete Controller Antilock Brake Circuit Diagram, Brakes - ABS Electrical Diagnostics.

Diagnostic Test

1. DTC PRESENT IN CONTROLLER ANTILOCK BRAKE (CAB).
This is an informational DTC letting you know that a DTC(s) is stored in the CAB.
Using the scan tool, read the ABS DTC(s) and perform the appropriate procedure.
Erase this DTC from the PCM after all ABS DTC(s) have been repaired.
PCM Diagnostic Information complete.

Continue

- Test Complete.
