9651 - TONNEAU COVER CYLINDER TRAVEL SENSOR (-) CIRCUIT SHORT TO B(+)





- When Monitored: Continuous with the ignition on.
- Set Condition: When the Power Top Control Module senses a short to B(+) on the Tonneau Cover Cylinder Travel Sensor (-) circuit.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. Tonneau Cover Cylinder Travel Sensor (-) Short to B(+)




Turn the ignition off.
Disconnect the Power Top Control Module C2 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.

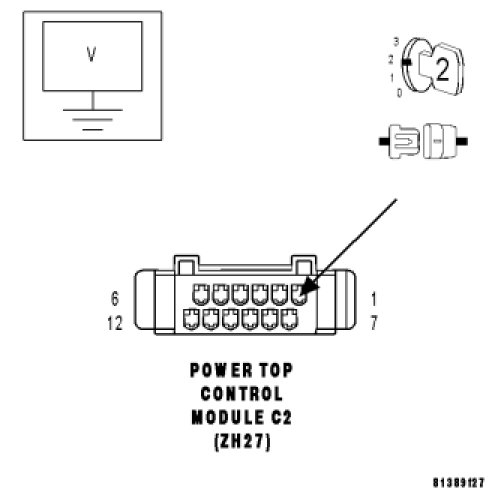

Measure the voltage of the Tonneau Cover Cylinder Travel Sensor (-) circuit at the Power Top Control Module C2 harness connector.
Is the voltage above 1.0 volt?

Yes

- Repair the Tonneau Cover Cylinder Travel Sensor (-) circuit for a short to B(+).
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test

No

- Replace the Power Top Control Module.Removal.
- Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test
