*Telescoping Wheel Indicator Inoperative: Notes

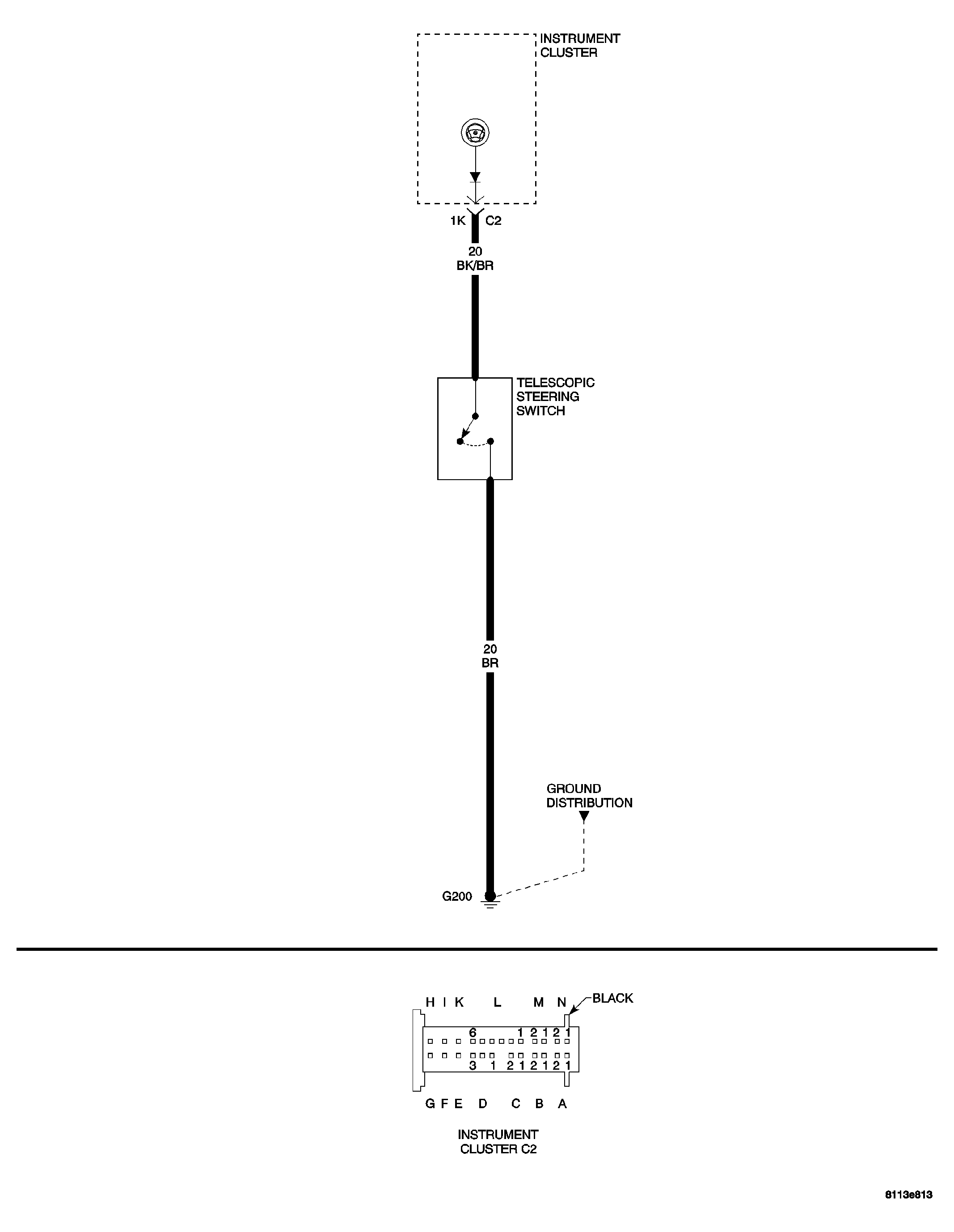

Fig 1: Telescoping Wheel Indicator Circuit Schematic
GC0035152Courtesy of CHRYSLER LLC
POSSIBLE CAUSES
INDICATOR CIRCUIT OPEN
SWITCH MALFUNCTION
INDICATOR LAMP
INSTRUMENT CLUSTER

For a complete Instrument Cluster Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
