Resetting The FSS Maintenance Indicator Procedure

Fig 1: Identifying Flexible Service System Indicator & Mileage Display

Courtesy of CHRYSLER LLC

The FSS maintenance indicator can be reset to the total mileage (1) or total time in two ways:

1. Automatically when the odometer (1) is reset to 0 within the first 155 miles. (The FSS maintenance indicator is reset to the values set at the factory).
2. Manually by the driver.

Fig 2: Identifying Instrument Cluster Gauges & Control Dials

Courtesy of CHRYSLER LLC

Perform the following to manually reset the FSS maintenance indicator:

1. Hold the left control dial (3) depressed.

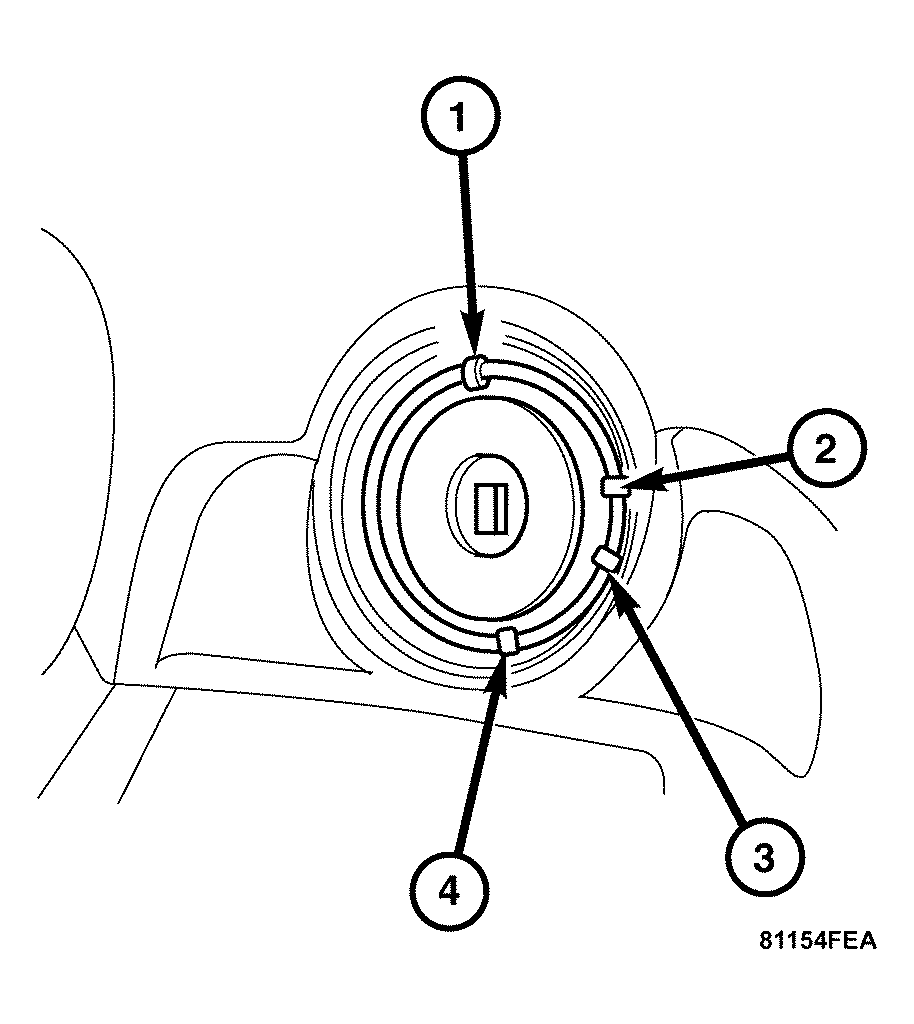

   Fig 3: Identifying Ignition Switch Positions

   Courtesy of CHRYSLER LLC
2. Simultaneously move the ignition switch to the "RUN" position (3).
   Fig 4: Identifying Instrument Cluster Gauges & Control Dials

   Courtesy of CHRYSLER LLC
3. Continue to hold the control dial (3) down for 10 seconds. After the audible tone, 15000 km (7,500 miles) appears on the display. The remaining mileage (1) is displayed again.
