Remaining FSS Mileage Display Procedure

Fig 1: Identifying Flexible Service System Indicator & Mileage Display

Courtesy of CHRYSLER LLC

The remaining FSS mileage (1) can be displayed at the request of the driver.

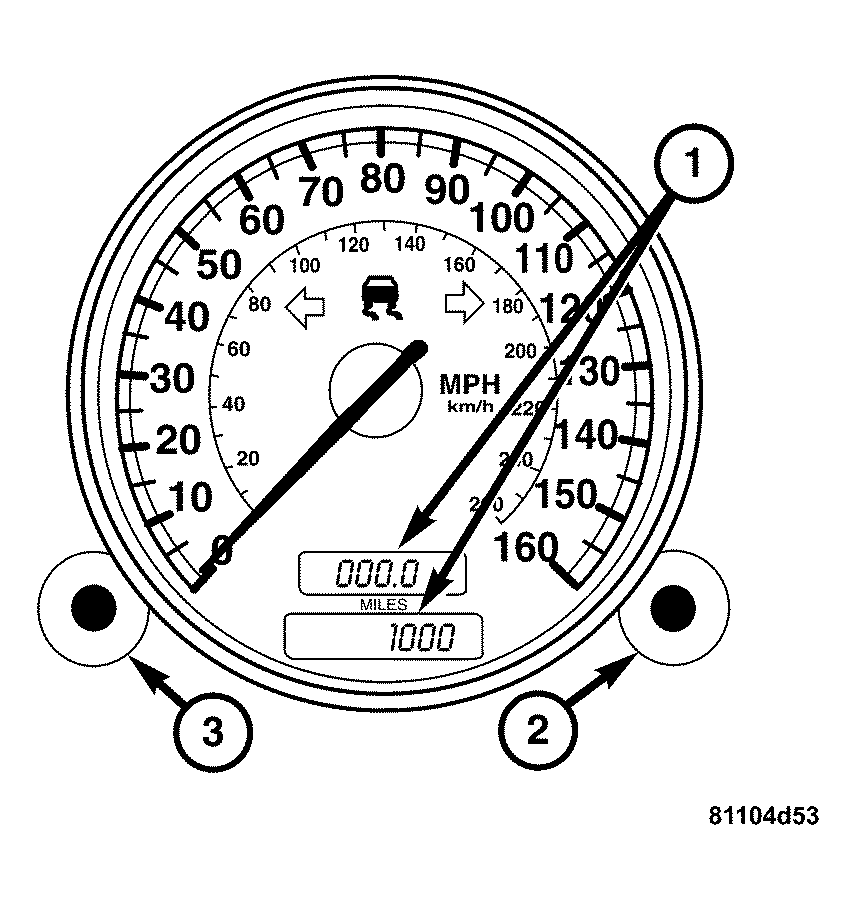

Fig 2: Identifying Instrument Cluster Gauges & Control Dials

Courtesy of CHRYSLER LLC

NOTE: The tool symbol appears for 10 seconds together with the current remaining mileage.

Press the left control dial (3) on the Instrument Cluster twice within a one second period.
