Instrument Cluster Bulb Removal

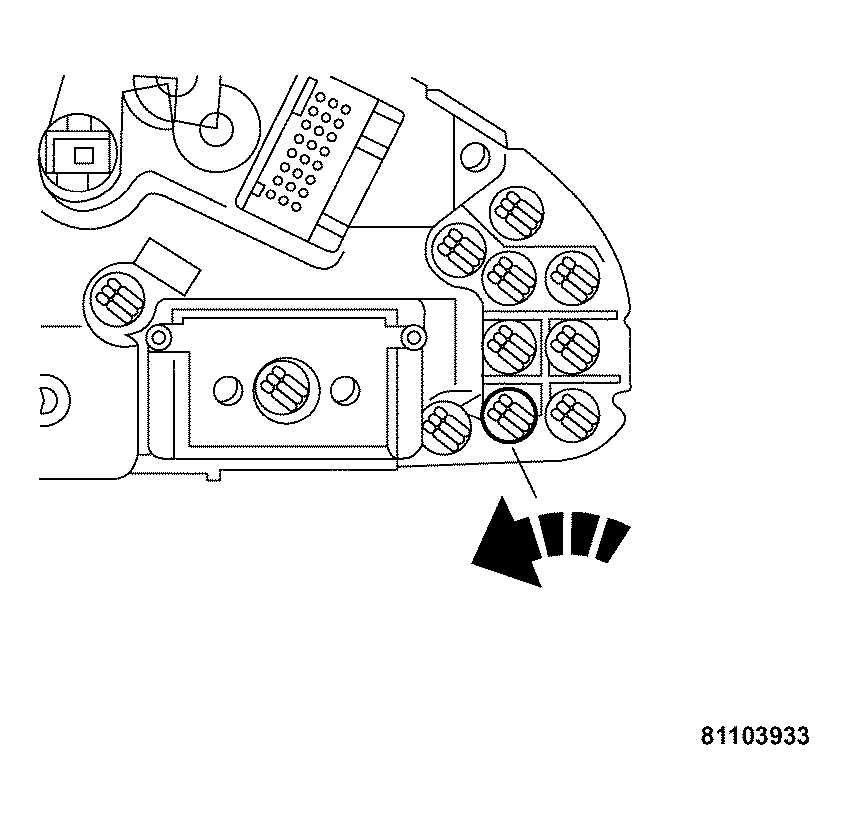

Fig 1: Removing Instrument Cluster Bulbs
GC0035203Courtesy of CHRYSLER LLC
  1. Remove the Instrument Cluster. See REMOVAL .
  2. To remove the Instrument Cluster bulbs, turn the bulb counter clockwise and remove it from the back of the Instrument Cluster housing.
