Instrument Cluster - RHD

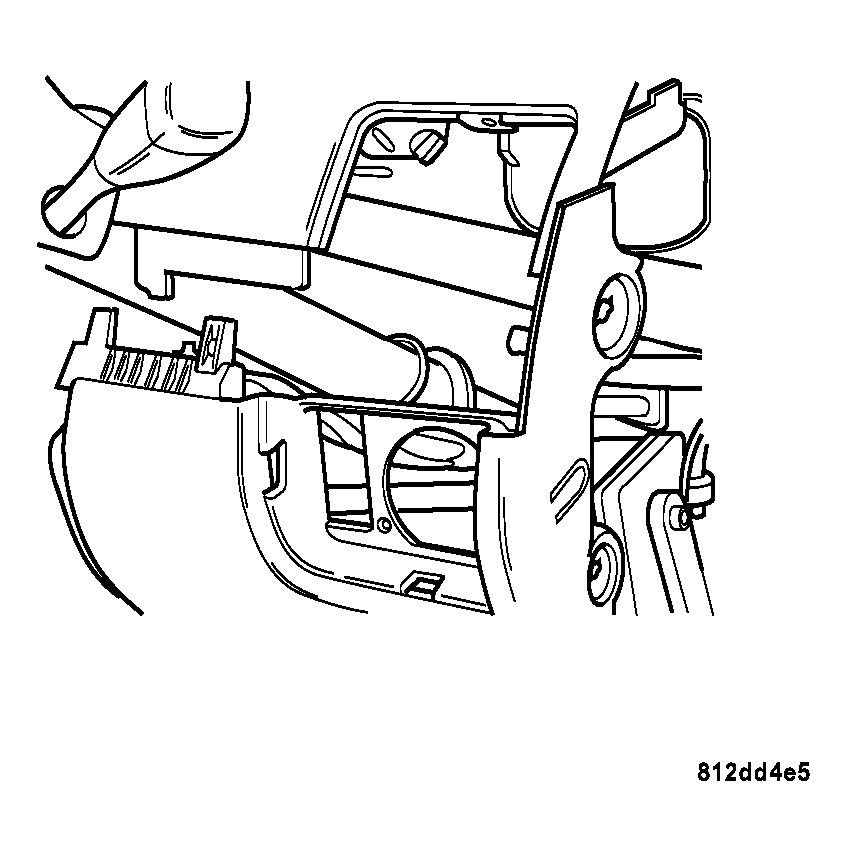

Fig 1: Removing/Installing Lower Instrument Panel Cover
GC0035208Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Remove the steering wheel. Refer to REMOVAL .
  3. Remove the lower Instrument Panel cover. Refer to REMOVAL .

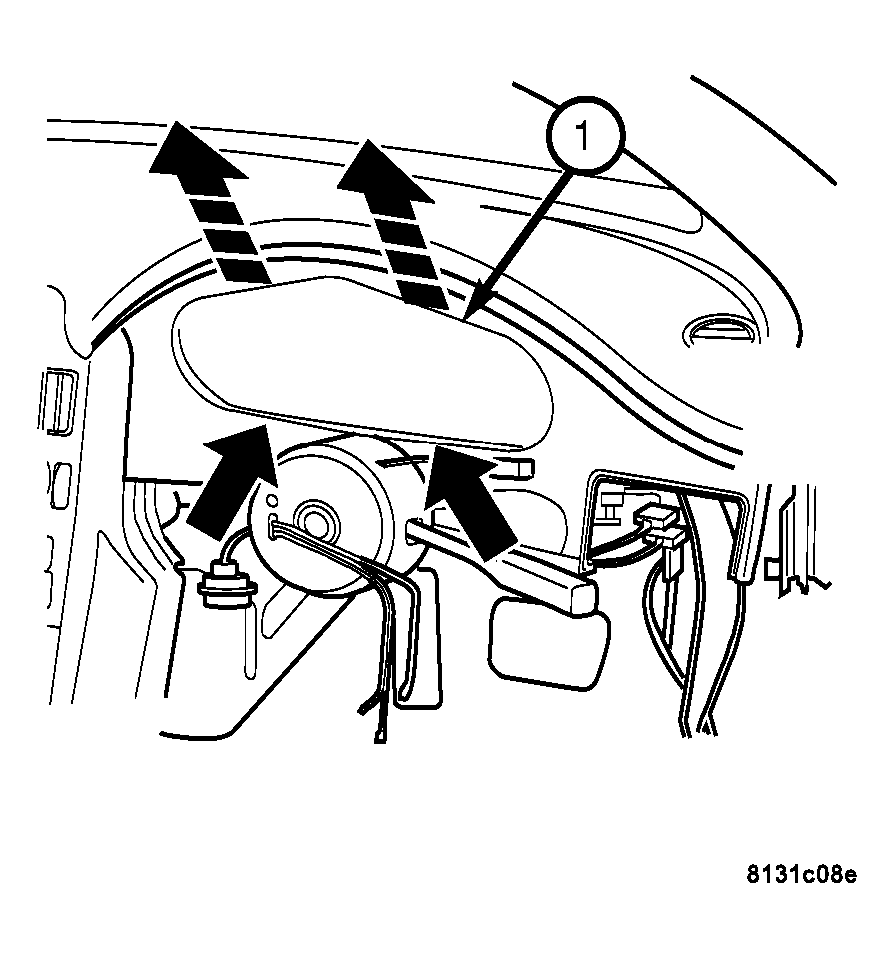

    Fig 2: Removing/Installing Instrument Cluster Bezel
    GC0032393Courtesy of CHRYSLER LLC
  4. Remove the Instrument Cluster bezel (1). Refer to REMOVAL .
  5. Remove the retaining screws from Instrument Cluster.
  6. Move the Instrument Cluster toward the rear of the vehicle.
  7. Unlock and disconnect the Instrument Cluster harness connectors from the back of the Instrument Cluster.
  8. Remove the Instrument Cluster from the vehicle.
